Conductive 20 Mesh 99.99% Pure Silver Wire Mesh For Electrodes Battery Skeleton

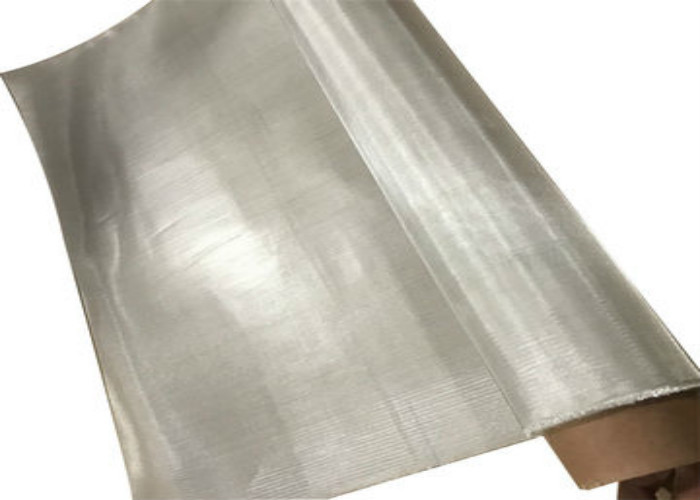

99.99% Pure Silver Wire Mesh

Characteristics: Made by stretching and drawing through moulds, the product is characterized by acid-alkali resistance, high tensile strength, intercrystalline corrosion resistance, smooth surface and bright color.
Performance: Acid resistance, alkaline resistance, high temperature resistance, strong tension, and good abrasion resistance.
Weaving type: Plain weave, twill weave, Dutch weave (plain), Dutch weave (twill).
Usage: Used for screening and filtering in the acid or alkaline environment, and used as a mud mesh in petroleum industry, as a screen mesh in chemical industry, and as a pickling mesh in electroplating industry etc.

99.99% Pure Silver Wire Mesh plain weave/twill weave mesh specificarion:

mesh/inch	wire diameter/mm	aperture/mm	mesh/inch	wire diameter/mm	aperture/mm
2mesh	1.8	10.9	60mesh	0.15	0.273
3mesh	1.6	6.86	70mesh	0.14	0.223
4mesh	1.2	5.15	80mesh	0.12	0.198
5mesh	0.91	4.17	90mesh	0.11	0.172
6mesh	0.80	3.433	100mesh	0.10	0.154
8mesh	0.60	2.57	120mesh	0.08	0.132
10mesh	0.55	1.99	140mesh	0.07	0.111
12mesh	0.50	1.61	150mesh	0.065	0.104
14mesh	0.45	1.362	160mesh	0.065	0.094
16mesh	0.40	1.188	180mesh	0.053	0.088
18mesh	0.35	1.060	200mesh	0.053	0.074
20mesh	0.30	0.970	250mesh	0.040	0.061
26mesh	0.28	0.696	300mesh	0.035	0.049
30mesh	0.25	0.596	325mesh	0.03	0.048
40mesh	0.21	0.425	350mesh	0.03	0.042
50mesh	0.19	0.318	400mesh	0.025	.0385

99.99% Pure Silver Wire Mesh Dutch Weave Wire Mesh specification:

weave type mesh count warp wire ( inch) weft wire inch absolute rating(micron) nominal rating(micron) weight per100sq PDW 8X20 0.014 0.0126 330-350 280 49 PDW 12X64 0.024 0.0165 270-290 200 84 PDW 14X88 0.02 0.013 220-240 150 75 PDW 16X80 0.0196 0.0134 225-235 140 79 PDW 24X110 0.015 0.01 115-125 80 55 PDW 24X128 2X0.010 0.004 110-120 75 34 PDW 30X150 0.009 0.007 110-112 63 33 PDW 30X150 2X0.009 0.007 95-113 60 33 PDW 40X200 0.007 0.0055 70-75 55 27 PDW 50X250 0.0055 0.0045 58-63 40 22 PDW 80X400 0.005 0.003 40-45 35 17 TDW 30X250 0.01 0.008 110-120 53 66 TDW 80X700 0.004 0.003 35-40 25 25 TDW 120X400 0.004 0.0025 50-55 40 15 TDW 165X800 0.0028 0.002 25-28 15 14 TDW 200X600 0.0024 0.0018 30 20 10 TDW 165X1400 0.0028 0.0015 16-20 10 14 TDW 200X1400 0.0028 0.0016 12-14 5 15 TDW 325X2300 0.0014 0.001 8-9 2 10 TDW 400X2800 0.001 0.0008 6-7 1 8
