    Square Hole Wire Mesh Filter Screen 80-400 Printing Mesh High Permeation

    Ask Lasest Price
    Brand Name : TIANHAO
    Model Number : TH-010
    Certification : ISO
    Price : Price will be offered to you once get your detailed specification.
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 500sqm/day
    Delivery Time : In stock, within 3-5 work days, no stock, 15-20work days. If have mold, 10-15days, if no mold, 20-30days.
    • Product Details
    • Company Profile

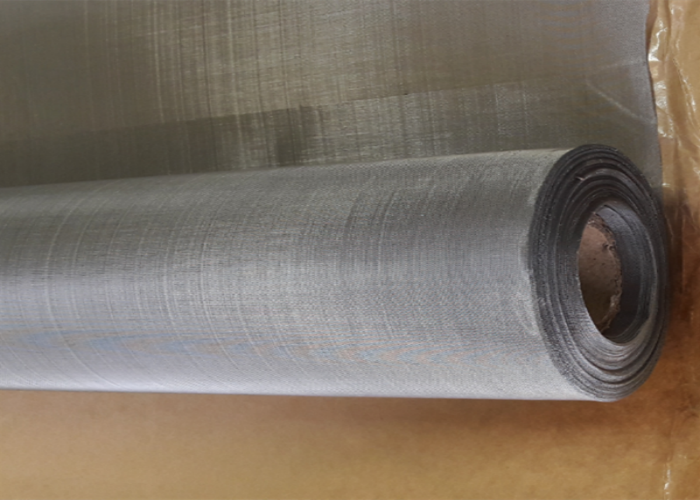

    Square Hole Wire Mesh Filter Screen 80-400 Printing Mesh High Permeation

    80-400 mesh Square hole Stainless steel screen printing mesh


    Product Description

    Stainless Steel Printing Mesh requires square opening and high permeation. The screen mesh is plain weave and has flat surface without joint knots, uniform opening, acid-resistant, alkali-resistant, high lasting strength will not be affected under ultra-violet radiation. Stainless steel printing screen is also known as super-thin wire cloth.


    1. Material: SS 304 316 316L etc..


    2. Weaving: plain weave


    3.Roll size for Stainless steel screen printing mesh
    Roll Width: 0.914 1.0 1.22 1.524 2.0 2.5 3.0 4.0 5.0 until 8.0m
    Roll Length:15m,30m,can be customized


    4.Features: Acid resisting, alkali resisting, heat resisting, durable in use.


    5.Applications:

    • Printing
    • Filtering
    • Sieving
    • Screening
    • Sifting

    6.Our advanceges


    To better serve our customers we stock a wide variety of woven steel wire mesh. We know downtime is always an issue and we make it a point to provide quick turnaround. The wire cloth is available in both 48” and 60” widths. We can provide both full rolls and / or cut pieces depending on your requirements. The vast majority of our customers request woven mesh from 304 or 316 stainless steel, but we are also able to supply type 430 and carbon steel in most cases. Use our wire mesh chart to find the opening best suited to your application.


    If you need to determine the size of an existing screen, we offer metal mesh counters. They are small enough to put in you pocket and extremely easy to use. Just unfold it and set it on a piece of wire mesh. The base is a 1 inch square opening and the top a magnifying glass. There are different units of measure marked on the interior of the base to assist you with identifying wire diameter, opening and holes per inch.


    7.Properties of Stainless Steel Wire Mesh

    304: The basic alloy. Type 304 (18-8) is an austenitic steel possessing a minimum of 18% chromium and 8% nickel, combined with a maximum of 0.08% carbon. It is a nonmagnetic steel which cannot be hardened by heat treatment, but instead. must be cold worked to obtain higher tensile strengths. The 18% minimum chromium content provides corrosion and oxidation resistance. The alloy's metallurgical characteristics are established primarily by the nickel content (8% mm.), which also extends resistance to corrosion caused by reducing chemicals. Carbon, a necessity of mixed benefit, is held at a level (0.08% max.) that is satisfactory for most service applications.


    316: For severe environments. Of course, there are many industrial processes that require a higher level of resistance to corrosion than Type 304 can offer. For these applications, Type 316 is the answer. Type 316 is also austenitic, non-magnetic, and thermally nonhardenable stainless steel like Type 304. The carbon content is held to 0.08% maximum, while the nickel content is increased slightly. What distinguishes Type 316 from Type 304 is the addition of molybdenum up to a maximum of 3%. Molybdenum increases the corrosion resistance of this chromium-nickel alloy to withstand attack by many industrial chemicals and solvents, and, in particular, inhibits pitting caused by chlorides. As such, molybdenum is one of the single most useful alloying additives in the fight against corrosion.


    430: The general purpose alloy of the ferritic class and the most popular of straight chromium (17%) stainless steels. Has magnetic properties similar to carbon steel but with much higher corrosion resistance. Commonly used in the food processing industry.


    8. mesh size
