Monel 400 Sintered Stainless Steel Filter , Sintered Mesh Filter 5
/ 6 Layer
Sintered mesh
Sintered wire mesh metal filter cloth is a porous metal plate made
from multilayer stainless steel wire mesh, and sintered into one
metal panel. It is usually consists of 5 layer (or 6-8 layer) mesh:
protect mesh layer, filter mesh layer, protection mesh layer,
reinforcement mesh layer, and reinforcement mesh layer. With high
mechanical strength and wide filter rating ranges, sintered filters
are a new fine materials for filtration used in food, beverage,
water treatment, dust removing, pharmaceutical, and polymer
industry.
1. Material: Stainless Steel wire 304 316 316L and FeCrAl, 310S,
Monel ...
2. Filtration precision Micron size:1-300micron
3. Layers:3 5 layers and 6 layers (standard layers 5)
4. Sizes of Sintered stainless steel mesh:500x1000mm, 600x1200mm,
1000x1000mm, 1200x1200mm etc
5. Shape: a plate square, round, ad rectangle ...
6.Deep processed: sintered filter tube, sintered disc, and others
7.Contructure of sinterede mesh screen: Protective Layer, Control
Layer, Dispersion Layer and Reinforcing Layer.
8.Features:
· High Temperature resistance
· Corrosion Resistance
· High Filtering Efficiency
· Metallic capacities, such as noise reduction,hot resistance,heat
conduction,high strength and etc
· Long working lifetime
Material:
The materials of sintered wire mesh commonly is stainless steel 304,
SS316,SS316L, but Alloy Steel Hastelloy, Monel, Inconel and other
metal or alloy as materials also available according customers
filter process requirement. Sintered stainless steel filter is the
most widely used type among all the materials due to its excellent
chemical stability and long service life.
Applications :
1. Precise filtration of various hydraulic oil lubricating oils in
the machinery industry;
2. Filtration and purification of various polymer melts in chemical
fiber industry, various high temperature in the petrochemical
industry, filtration of corrosive liquids, filtration, washing and
drying of materials in the pharmaceutical industry;
3. The application of gas homogenization in the powder industry,
fluidized plates in the steel industry;
4. In the explosion-proof electrical appliances, etc.

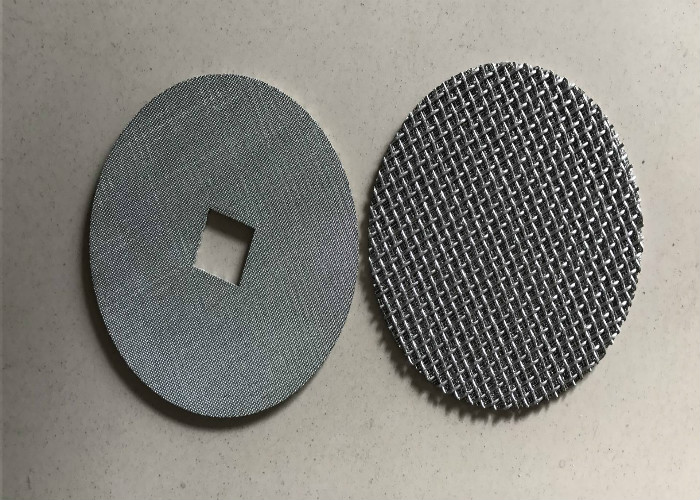

Sintered Mesh Disc description:
Sintered metal mesh is a new type of filter material which is made
of multi-layer metal braided wire mesh and is manufactured by a
special lamination press and vacuum sintering process, and has a
high mechanical strength and an overall rigid structure.
Structural features:
Generally divided into five-layer structure, divided into
protective layer, filter layer, separation layer, support layer
four parts, the sintered mesh material is easy to be formed,
processed and welded, and can be conveniently processed into round,
cylindrical, conical, corrugated and other forms of filter
elements.
Sintered Mesh Disc Feature:
1. High strength and good rigidity: High mechanical strength and
compressive strength, good processing, welding and assembling
performance, and easy to use.
2. The use of a wide range of environments: Can be used for -200 °C ~
600 °C temperature environment and acid-base environment
filtration.
3. Uniform and stable precision: It can achieve uniform and uniform
filtration performance for all the filtering precision. The mesh
does not change during use.
4. Excellent cleaning performance: good counter-current cleaning
effect, repeated use, long life (can be counter-current water,
filtrate, ultrasonic, melting, baking and other methods of
cleaning).
Sintered details:
| Item | Sintered Wire Mesh Disc |
| Material | FeCrAl, 310S, Stainless Steel 316,316L |
| Layer | 5 Layer or 6 Layer |
| Specification | Filter Rating, 1 to 300 Micron 5 Layer Thickness 1.7MM 6 Layer Thickness, 3.5MM (Add 1 Layer Mesh 10) The common Size 0.5M X 1M, 1M X 1M,0.6M X 1.2M, 1.2M X 1.2M |
| Filtering Rule | If the support layer on outside, then Filtering from inner to
outside If the support layer on inside, then filtering from outside to
inner. |
| Quotation Need | Material, Thickness, Layer and Filter rating |
| Customized | Available |
