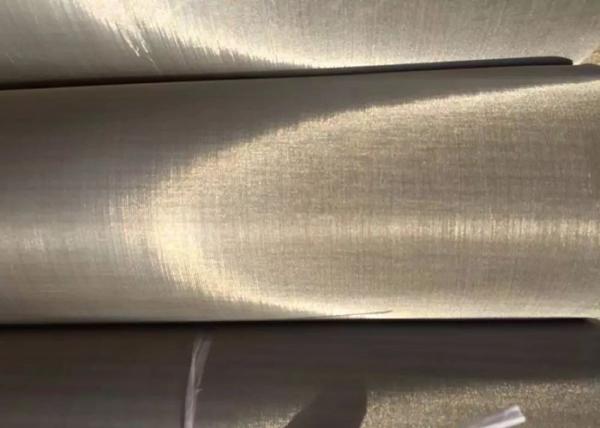

UNS S31000 310 Stainless Steel Heat Resistant Wire Mesh Screen
Product Description
Often referred to as “25-20″ stainless, 310 SS wire mesh is suited
for applications requiring high strength and excellent oxidation
resistance. The maximum e temperature is about 2000°F, but is
successfully used up to 2100°F under certain conditions. Preforms
well under intermittent heating and cooling.
Type 310 also refered to as T-310 or T310 is nonmagnetic when
annealed or cold worked. Well suited where a combination of
strength, toughness, corrosion and oxidation-resistance is
essential.
310 stainless steel wire mesh screen is often used for welding rod,
furnace parts, aircraft and jet engine parts, oil refinery and
chemical processing equipment, heat exchangers and strainers.
| Material | Stainless Steel 310/310S |
| Wire Diameter | 0.05-2m |
| Mesh Counts | 1-200mesh |
| Mesh Type | Fine Mesh(>80mesh); Coarse Mesh(<80mesh) |
| Weaving Type | Plain Weave; Twill Weave; Dutch Weave; Five Heddle Weave |
| Edge Finish | Close Selvage; Round Ended; Flash |
| Standard Width | 3' 4' 5' 6' |
| Standard Length | 100' |
Stainless Steel 310/310S Mesh Chemistry:
| Element | Cr | Ni | C | Si | Mn | P | S | Mo | Cu | Fe |
| SS 310 | 24 – 26 % | 19.2 – 22 % | 0.25 % | 1.50 % | 2 % | 0.045 % | .03 % | 0.75 % | 0.50 % | Bal |
| SS 310S | 24 – 26 % | 19.2 – 22 % | 0.25 % | 1.50 % | 2 % | 0.045 % | .03 % | 0.75 % | 0.50 % | Bal |
310 SS Fact Sheet
| Composition | [Cr 24-26%, Ni 19-22%, C 0.25%] |
| Specifications | ASTM A580 |
| Density | 0.289 lbs/in³ |
| Tensile Strength | 102 Kpsi* |
| Elongation | 48%* |
| Melt | 2550-2650° F |
| Max. Operating Temperature | 2000 - 2100° F |
Feature:
310S stainless steel(2520), due to high content of Ni and Cr, it is
with good oxidation resistance, corrosion resistance, acid and
alkali resistance, high temperature resistance
Application:
310 stainless steel wire mesh screen is often used for welding rod,
furnace parts, aircraft and jet engine parts, oil refinery and
chemical processing equipment, heat exchangers and strainers.
