200 280 350 400 Mesh Titanium Wire Cloth Metal Fabric For Battery
Collection
Titanium Wire Mesh Description
Titanium mesh is mainly used for screening and filtration under
acid and alkaline conditions or for gas, liquid filtration and
other media separation.
Material: TA1, TA2, GR2, GR3, R50250, titanium alloy, etc.
Material surface: 1. Black (surface containing graphite emulsion
coating) 2. Bright (Graphite-free coating)
Titanium Wire Mesh Specification,
Titanium mesh 1 mesh - 400 mesh.
Common specifications 15 mesh, 40 mesh, 60 mesh, 80 mesh, 100 mesh,
120 mesh,
400 mesh, other specifications can be produced in accordance with
the buyer's requirements.
Pure titanium mesh is affected by the production equipment, the
minimum width is 5mm, the maximum length is 2000mm, and the length
is unlimited.
Titanium Wire Mesh Features
Titanium mesh anti-corrosive characteristics
The high-purity titanium mesh screen produces a dense, strong and
inert oxide film on the surface of the corrosion-resistant medium,
resulting in a passivation phenomenon
Especially in the following use environment more excellent
corrosion resistance, such as: seawater, wet chlorine, chlorite and
hypochlorite solution, nitric acid, metal chromate chloride and
organic salts (eg: 60% nitric acid The corrosion rate of pure
titanium mesh in nitric acid solution is only 0.001mm.a-1 ).
Titanium Wire Mesh Usage
Titanium mesh can be used in high-temperature filter, shipbuilding,
military manufacturing, chemical filter, mechanical filter,
electromagnetic shielding network, seawater desalination filter,
high temperature furnace heat treatment supporting network, oil
filter, food processing, pharmaceutical filtration, and other
industries .
Titanium Wire Mesh Table Size
| Material | TA1 TA2 TA3, GR1 GR2 GR3 R50520 and Titanium Alloy etc Black Pure Titanium Ti≥99.6%, Bright Pure Titanium Wire |
| Weave type | Plain Weave and Twill Weaving |
| Hole Shape | Square |
| Specification | Mesh 10 to 400 Mesh Wire diameter, 0.15mm - 0.6mm Width, 0.05m - 2.5m |
| Feature | Low density and high specific strength Corrosion resistance, special used for high corrosion environment. Pre-cleaned to remove manufacturing oils |
| Application | Vaporizer, Industrial manufacture, chemical filter, mechanical
filter, desalination filter etc |
| Sample | Available |
| Stock | Dutch weave mesh 20 x 200 in stock. Other size please contact with us for checking |

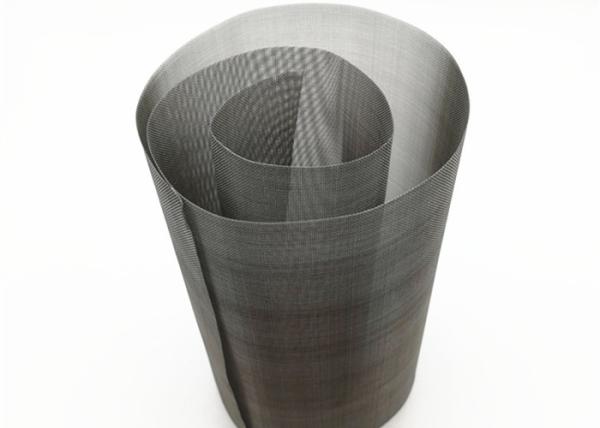

Photo Show,
