Inconel woven Wire Mesh screen for high temperature applications
Production Introduction
Inconel Mesh is made of Inconel alloys for use in the moderate to
severely corrosive conditions at high temperatures. We produce
Inconel mesh in the following grades:
Inconel Mesh has excellent resistance to carburization, pitting and
crevice corrosion, stress corrosion cracking and oxidation. It is
resistant to a wide range of corrosive media such as organic,
inorganic compounds, acids and alkali. It possesses high
temperature mechanical strength, creeping resistance and long
service life.
Material details
Inconel 600 Mesh: Alloy 600 has outstanding resistance to heat,
oxidizing and corrosive media and offers performance temperature up
to 2000oF. It is resistant to SCC and reducing media and has good
mechanical characteristics from cryogenic to high temperatures.
Inconel 601 Mesh: Inconel 601 has great oxidation resistance up to
1250oC or 2200oF. It is called as a high temperature mesh material
offering good spalling resistance, creeping strength and high
temperature stability. It maintains ductility even after prolong
service.
Inconel 617 Mesh: Alloy 617 offers elevated temperature oxidation
and corrosion resistance up to 1800of. It offers high mechanical
strength and great metallurgical stability. The alloy is resistat
to pitting and crevice corrosion and variety of strong acids such
as hydrochloric acid, hydrofluoric acid, sulfuric acid and nitric
acid.
Inconel 625 Mesh: It is a high strength engineered material for
outstanding corrosion and oxidation resistance at the elevated
temperatures up to 1093oC or 2000oF.
Inconel 718 Mesh: Alloy 718 is a precipitation hardened material
for providing great high temperature corrosion resistance
properties and mechanical strength. It has outstanding resistance
to creeping and SCC up to 982oC.
Mesh size of the Inconel Mesh
Main Specification of Hastelloy Wire Mesh (Special Size can be customized): Mesh count | Wire diameter(mm) | Aperture(mm) | Max width(m) | 10 | 0.60 | 1.94 | 1.60 | 20 | 0.40 | 0.87 | 1.60 | 30 | 0.30 | 0.55 | 1.60 | 40 | 0.23 | 0.40 | 1.60 | 50 | 0.20 | 0.31 | 1.60 | 60 | 0.15 | 0.27 | 1.60 | 70 | 0.12 | 0.24 | 1.60 | 80 | 0.13 | 0.19 | 1.60 | 90 | 0.12 | 0.16 | 1.60 | 100 | 0.10 | 0.15 | 1.60 | 120 | 0.09 | 0.12 | 1.60 | 150 | 0.063 | 0.11 | 1.60 | 180 | 0.053 | 0.01 | 1.60 | 200 | 0.053 | 0.07 | 1.60 |
|
Mesh weaving processing
The service we offer
The packing

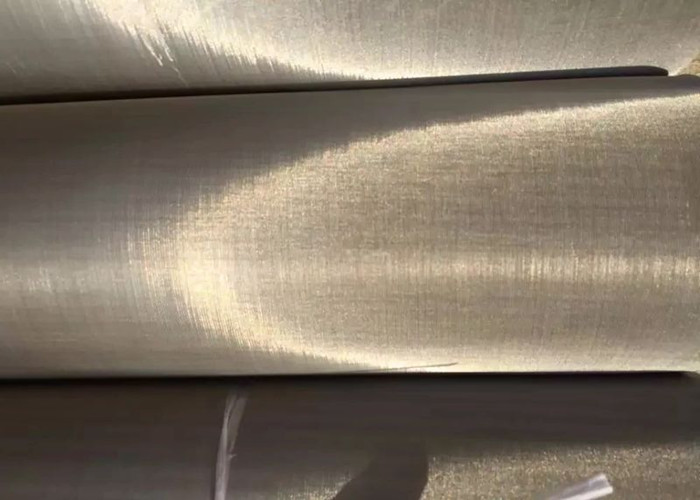

Goods pics
Thanks for your kind attention, any need, pls feel free to contact
with me !
