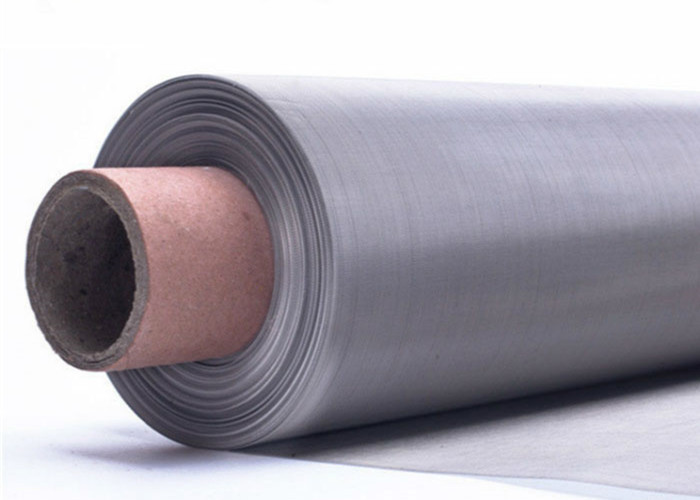

2205 2507 Stainless Steel Super Duplex Wire Mesh
| Item | Duplex (Super Duplex) Stainless Steel Wire Mesh |
| Material | UNS S31803(SAF2205), UNS S32750(SAF2507) |
| Weaving Type | Plain, Dutch |
| Specification | Mesh 2 - 150 / Dutch weave, 30 x 150 Mesh Wire diameter, 0.05 - 2.0mm Width and length can be customized |
| Feature | Excellent corrosion resistant High thermal conductivity |
| Uses | Special used for chemical, seawater desalination equipment. |
| Sample | Available |
| Related Seawater used material | Stainless Steel 904L Monel 400, K-500 |
| Stock | Please contact us for new stock size. |
| MESH | WIRE DIAMETER | APERTURE/OPENING | %OPEN AREA |
| INCH | MM | INCH | MM |
| 2X2 | .063 | 1.60 | .437 | 11.10 | 76.4 |
| 5X5 | .041 | 1.04 | .159 | 4.04 | 63.2 |
| 10X10 | .025 | .64 | .075 | 1.91 | 56.3 |
| 20X20 | .020 | .508 | .0300 | .76 | 36.0 |
| 30X30 | .013 | .330 | .0203 | .52 | 37.1 |
| 50X50 | .008 | .203 | .0120 | .31 | 36.0 |
| 60X60 | .0075 | .191 | .0092 | .23 | 30.5 |
| 60X60 | .007 | .178 | .0097 | .25 | 33.9 |
| 80X80 | .0065 | .165 | .0060 | .15 | 23.0 |
| 80X80 | .0055 | .140 | .0070 | .18 | 31.4 |
| 90X90 | .005 | .127 | .0061 | .16 | 30.1 |
| 100X100 | .0035 | .089 | .0065 | .17 | 42.3 |
| 160X160 | .0025 | .0635 | .0038 | .0965 | 36.4 |
| 180X180 | .0023 | .0584 | .0033 | .0838 | 34.7 |
| 200X200 | .0021 | .0533 | .0029 | .0737 | 33.6 |
| 300X300 | .0051 | .0381 | .0018 | .0457 | 29.7 |
| 400X400 | .0010 | .0254 | .0015 | .370 | 36.0 |
Our Service
OEM | Yes |
Special Sizes or Shape | Yes |
Customized packing | Yes |
Sample | Can be offered or Made |
Delivery time | Usually within 7-15 working days |
Payment terms | T/T, Western Union, PayPal., Escrow, L/C |
Optional Way of Transportation | Sea Transportation, Air Transportation International Express: DHL,TNT,DEDEX,UPS,EMS |
FAQ
1. Are you factory/manufacturer or trader?
We are direct factory who owns production lines and workers.
Everything is flexible and there is no need to worry about extra
charges by the middle man or trader.
2. Which countries do you export to?
Our goods are mainly exported to Australia, Canada, UK, USA,
Germany, Thailand,South Korea and so on.
3. Can I get free samples?
If the sample is available, yes, can be free. If unavailable, need
to customize.
4. What is your minimum order quantity?
Actually there is no MOQ for our products. But usually we recommend
a quantity based on the price which is easy to accept.
5. Which payment method you can accept?
Generally we adopt T/T, LC, Western Union, PayPal, Escrow and Money
Gram
Please contact with us freely.
