Brand Name : | Tianhao |
Model Number : | SM-011 |
Price : | |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal etc |
Supply Ability : | 10 rolls per month |
Delivery Time : | 25-30 days after receiving payment |

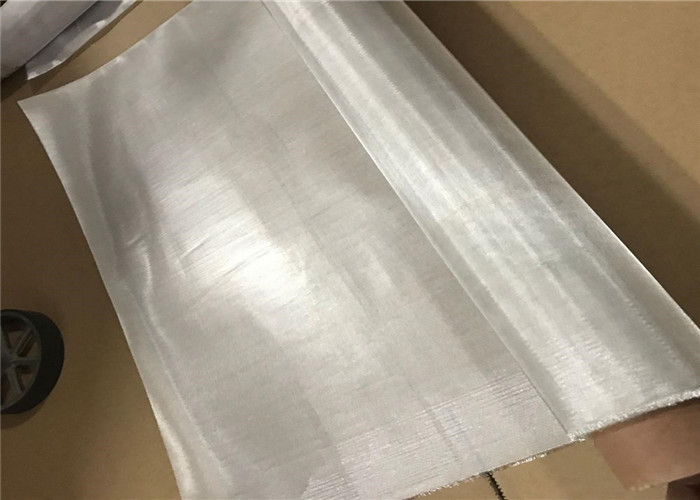

5 8 10 20 30 mesh SUS 410 430 Stainless Steel Wire Mesh for sugar filteration
material | 410 430 stainless steel wire |
weaving | plain weave,twill weave ,dutch weave |
mesh | 1-300mesh |
characteristics | 1. 410 430 stainless steel wire mesh is magnetic and of good
corrosion resistance |
application | used in mine, oil ,chemical industry,pharmaceutical industry and machine-making etc |
Stainless Steel Wire Mesh | ||||||
mesh/inch | wire diameter mm | aperture mm | mesh/inch | wire diameter mm | aperture mm | |
2mesh | 1.80 | 10.90 | 60mesh | 0.15 | 0.273 | |
3mesh | 1.60 | 6.866 | 70mesh | 0.14 | 0.223 | |
4mesh | 1.20 | 5.15 | 80mesh | 0.12 | 0.198 | |
5mesh | 0.91 | 4.17 | 90mesh | 0.11 | 0.172 | |
6mesh | 0.80 | 3.433 | 100mesh | 0.10 | 0.154 | |
8mesh | 0.60 | 2.575 | 120mesh | 0.08 | 0.132 | |
10mesh | 0.55 | 1.990 | 140mesh | 0.07 | 0.111 | |
12mesh | 0.50 | 1.616 | 150mesh | 0.065 | 0.104 | |
14mesh | 0.45 | 1.362 | 160mesh | 0.065 | 0.094 | |
16mesh | 0.40 | 1.188 | 180mesh | 0.053 | 0.088 | |
18mesh | 0.35 | 1.060 | 200mesh | 0.053 | 0.074 | |
20mesh | 0.30 | 0.970 | 250mesh | 0.04 | 0.061 | |
26mesh | 0.28 | 0.696 | 300mesh | 0.035 | 0.049 | |
30mesh | 0.25 | 0.596 | 325mesh | 0.03 | 0.048 | |
40mesh | 0.21 | 0.425 | 350mesh | 0.03 | 0.042 | |
50mesh | 0.19 | 0.318 | 400mesh | 0.025 | 0.0385 | |
Width of Stainless Steel Wire Mesh: 0.6m-6.0m |
Anping Tianhao Metal Wire Mesh Co.,Ltd was established in 2004 and located in Anping, which is home to
wire mesh.
With more than 10 years experience, we manufacture and export all
kind of wire mesh,including stainless steel wire mesh,
nickel wire mesh,nickel alloy wire mesh,copper wire mesh,titanium
wire mesh and related deep processing products.
We are very happy if you do not hesitate to send us any of your
inquires and we will always give satisfactory services.
![]() |
